SHANTUI SG21-3 motor grader

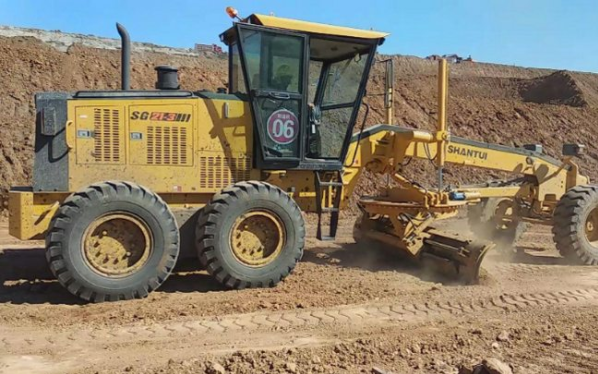

For the mining project of a large-sized open pit mine, the requirements on the equipment were really stringent and the customer one-time purchased 8 units of this equipment from our company. With high construction efficiency, reliable and stable operation, and caring services, Shantui SG21-3 motor grader won the consistent recognition from the constructor. At present, this batch of equipment is under good working status and the customer expressed the intention to purchase remodeled equipment in the future.
|
Engine
|
Engine model
|
Cummin s 6BTAA5.9-C180
|
|
Engine type
|
In-line, water-cooled, 4-cycle, direct injection, turbocharged
|
|
Number of cylinders
|
6(102X120mm)
|
|
travel speed
|
Transmission and torque converter: Electronic controlled transmission
|
|
Forward
|
0~5.4 km/h
|
0~9.3 km/h
|
0~12.2 km/h
|
0~20.7km/h
|
0~25.6 km/h
|
0~39.7 km/h
|
|
Reverse
|
0~5.4 km/h
|
0~12.2 km/h
|
0~25.6 km/h
|
|
|
|
|
Steering system
|
Max. steering angle of front wheel
|
±45°
|
|
Max. tilting angle of front wheel
|
±17°
|
|
Max. oscillating angle of front axle
|
±15°
|
|
Operation weight
|
Operating weight (standard configuration)
|
16200 kg
|
|
Front axle load
|
4800 kg
|
|
Rear axle load
|
11400 kg
|
|
Blade
|
Blade length
|
3660/3965 mm
|
|
Blade height
|
635 mm
|
|
Blade rotational angle
|
360°
|
